Product Hrilhfiahna
1. In chhunga RO Tui Filter Booster Pump Item:PL-303-400W ,24V/DC ±5%
2. A danglamna chu ro reverse osmosis tui filter system ro
Definition: 30 psi inlet pressure-a hman tur RO water purifiers tan ruahman a ni ber.
Product features: vibration hniam leh ri hniam.
3. Cooling method: radiation hmanga tihlum
4. Ro filter booster pump atana technology mamawh
4.1 A structure, dimension leh tolerances. 3/8 pipe threaded interface

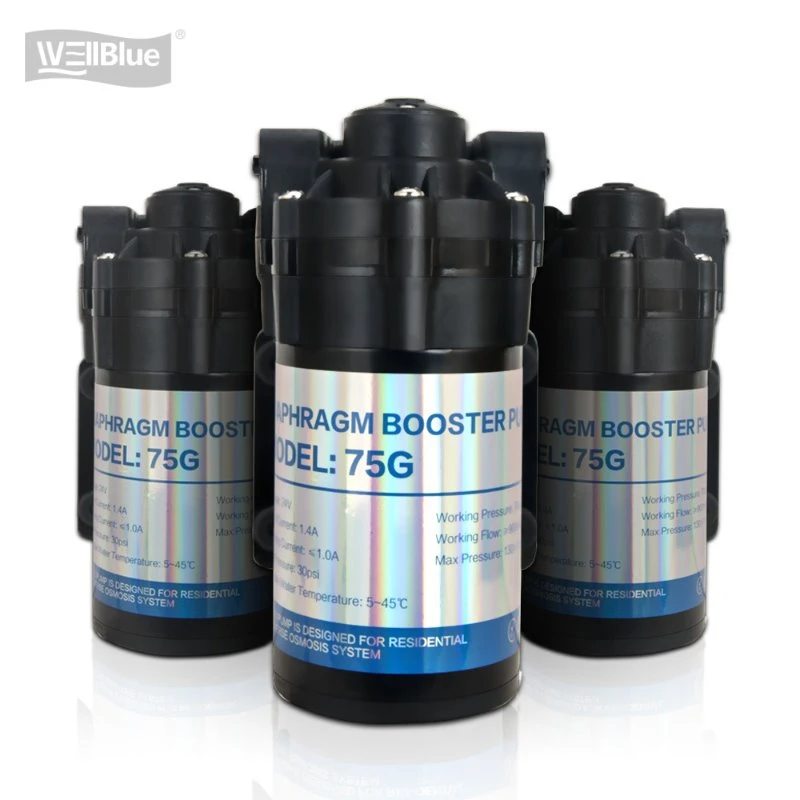

In chhunga RO Tui Filter Booster Pump sawifiahna
1. He drawing hi reference atan chauh a ni a, a size tak tak chu product hnuaiah a awm a;
2. Suspension rubber compression chu 1-1.5mm a control tur a ni a;
3. Pump luh leh chhuahna diameter chu 3/8 inch taper pipe thread a ni a;
4. Power cable hi 20AWG×2C×L22CM niin L6.2 terminal a ni a;
5. A chunga dimension te hi mm.
A thatna te
Household RO Water Filter Booster Pump hi in lama reverse osmosis tui tithianghlimtu tan chauh siam a ni. System hrang hrang tam tak nen a thawk tha hle a, tui tihfai that nan stable boosting power a pe bawk. Noise leh vibration tlemte nen a tlan a, radial cooling a nei bawk a, hei hian a lumna a tipung lo va, a kal tha thei lo bawk. Pump hian device hrang hrang nena thawk ho interface a nei a, set up pawh a awlsam a, parts pawh a tha tawk hle a, hei hian a seal tha ang a, rintlak takin hna a thawk thei bawk. Electrical performance him leh rintlak tak a nei a, boosting flow tling tak a nei a, energy hman tlem a nei bawk. Home reverse osmosis water purification system atan booster pump accessory quality sang tak a ni a, a lum lutuk dawn lo va, a leak dawn lo va, rei tak a daih dawn avangin.
Technical lama thil tulte
1. Landan
Fuselage chunglam paint chu a tla lo tur a ni a, a joint pawh a lo chhuak lo tur a ni a, rubber feet pawh a chhe lo tur a ni.
2. Electric chakna
Power port leh casing hian flashover leh breakdown awm lovin 500V/50Hz/1min a tuar thei a ni.
3. Voltage rated a niDC 24V ± 5% a ni.
4. Pressurization leh flow performance teInlet pressure chu 30 psi a nih a, outlet pressure chu 70 psi a nih chuan output flow zawng zawng chu 2200 mL/min aia tam emaw, a tlukpui emaw a ni.
5. Tui lumna hman tur5℃~45℃a ni
6. hnathawhna hmun boruak lum leh vawt5℃C ~ 40℃C a ni
7. Hnathawh tui pressure30psi a ni
8. Hnathawh tur current2.2A aia tlem emaw a tlukpui emaw (inlet pressure 30 psi, outlet pressure 70 psi)
9. Rated current a awm2.8A aia tlem emaw, a tlukpui emaw a ni
10. Pressure laka inven theihna
Deformation leh chhiatna awm lovin 170psi (12kg) static water pressure a tuar thei a, joint tinah tui leakage a awm lo.
11. Outlet tawp chakna
Lead end hian axis zawhin 10±1s chhung 40N pulling force a dawng a, lead end chu a lo chhuak tur a ni lo.
12. Damp heat test reng reng
40 ± 2℃C temperature leh relative humidity 93% ± 3% awmna hmunah darkar 48 chhung dah a ni a, a vawt hnua a electrical property te pawh a awm bawk
A mamawh chu a la tlin reng.
13. Leihnuai lumna
Darkar 24 chhung hnathawh chhunzawm zel hnuah chuan lei chung lumna chu 50K aia tlem emaw, a tlukpui emaw a sang chho thin.
14. Blocking pressure a awm140 PSI ± 15 PSI (inlet pressure chu 30 psi a ni a, tuiin a block)
15. Thawm ri55 dB(A) aia tlem emaw, a tlukpui emaw .
16. Nun chhung zawng
Vawi 100,000 emaw darkar 2000 vel hnathawh chhunzawm zel atanga tan a ni a, thil danglam tak tak, tui leak, jamming, leh ri nasa lutuk te a awm tur a ni lo.
17. Tui hammer laka invenna
Test zawhah hian 0-1.05MPa vawi 100,000 vel water hammer test vawi 100,000 vel a tuar thei a, deformation, damage, leh leakage awm lo.
18. Mahni-priming san zawng:non
19. Blasting pressure a awm thin3.2MPa (454.4PSI) aia tam emaw, a tlukpui emaw
